21 August 2023
Focus on North America, where LACROIX’s engineering team is committed to optimizing efficiency!
How? By implementing continuous flow production and adopting automation when volumes justify it.
But that’s not all: discover how this innovative approach reduces product handling while optimizing production yields.
Explore our approach to advanced automation and optimized total cost of acquisition in PCBA manufacturing and complex assembly.
Ready for a smart and high-performance factory? Let yourself be captivated by this ongoing industrial evolution!

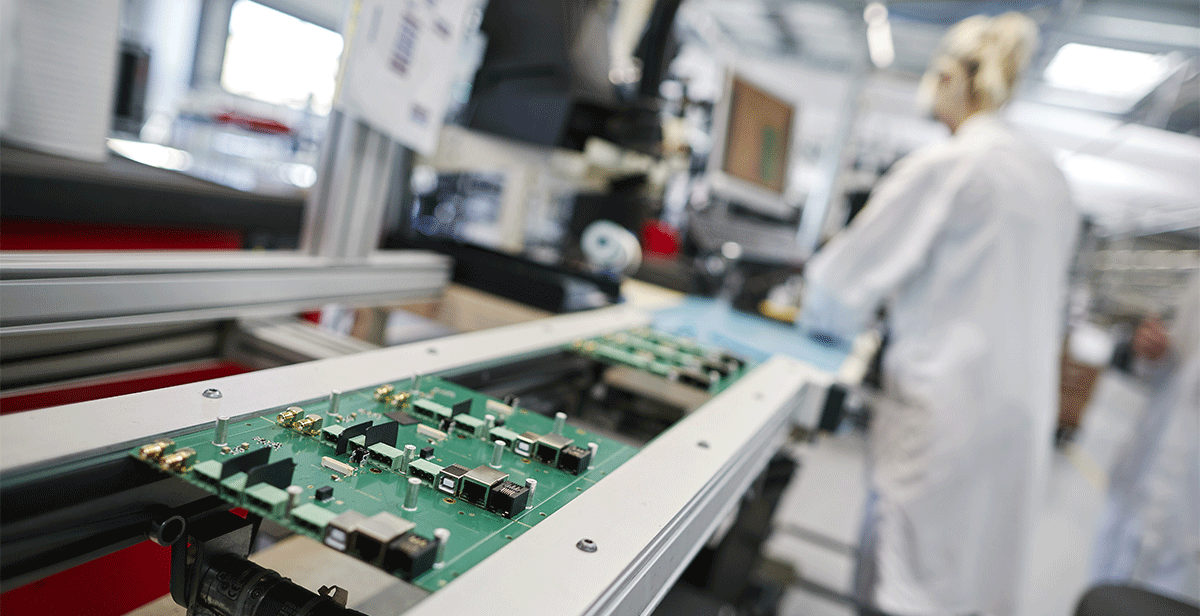

PCBA and HLA assembly lines/work cells design incorporates these basic principles:
Takt time is a key measure in setting up production lines. The German word, “takt” translates to pulse or beat.
Not only do manufacturing engineers consider the balance among the equipment in heavily automated areas such as SMT, but they also consider the total alignment of takt time in secondary and final assembly operations so that there is balanced workflow and minimal excess work-in-process (WIP) or handling throughout the entire manufacturing cycle.
In the case of a specialized lighting product where each unit was over 50 inches in length, specialized equipment was required from paste deposition through final assembly. Additionally, because each PCBA had hundreds of LED placements, the production process required closed-loop real-time feedback to monitor yield throughout the process.

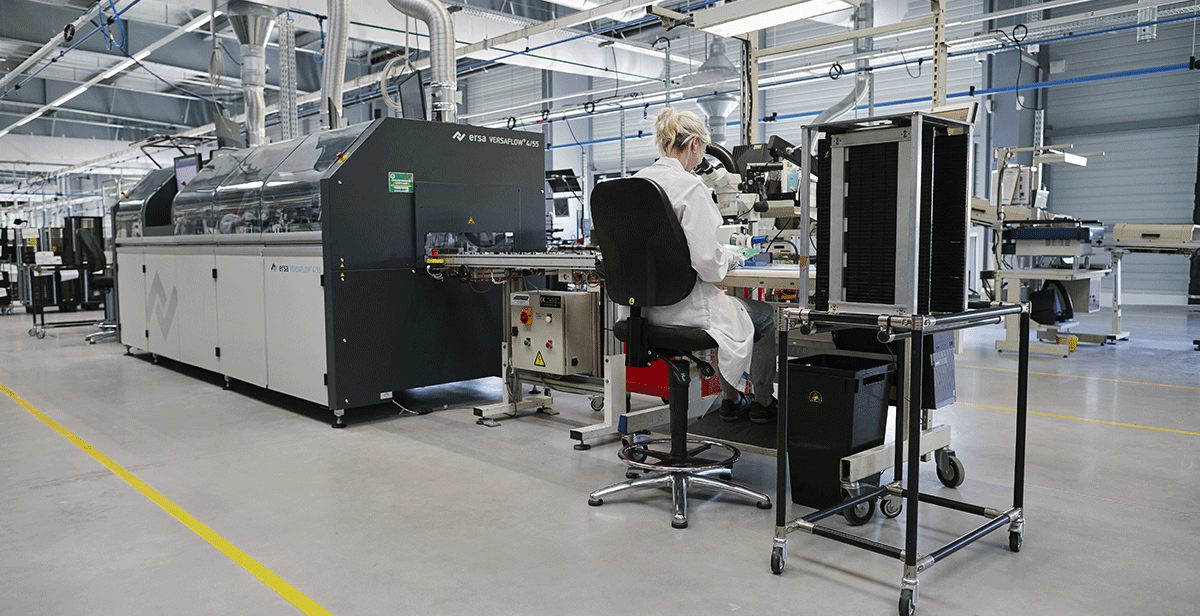

For the SMT portion of the project, the engineering team in the Juarez, Mexico facility did an evaluation of three brands of placement machines’ capabilities and total footprint. The next step was to determine speed and integration compatibility with existing equipment. With placement accuracy being nearly equal among the machines and all three supporting the industry standard schema communication protocol, it came down to size and speed.
The selection was based on the size and speed of the equipment. The placement accuracy was similar among the three machines. Additionally, they all used the standard LACROIX communication protocol. One machine outperformed the other two by approximately 12% in terms of placement speed. Despite having a slightly larger footprint, its speed provided a clear advantage.
This drove a need to innovate in a complementary test process which utilized camera sensing to perform a “global” test where the entire board was measured with a single pass to ensure takt time stayed in balance with the SMT line.
For conformal coating, the team worked with an existing equipment supplier to modify the platform they’d standardized on with special spray nozzles that achieved the coverage required and still maintained takt time metrics. The efficiencies achieved with the modified design drove a need to add a third SMT placement machine for line balance and the throughput improvements kept this equipment addition cost neutral.

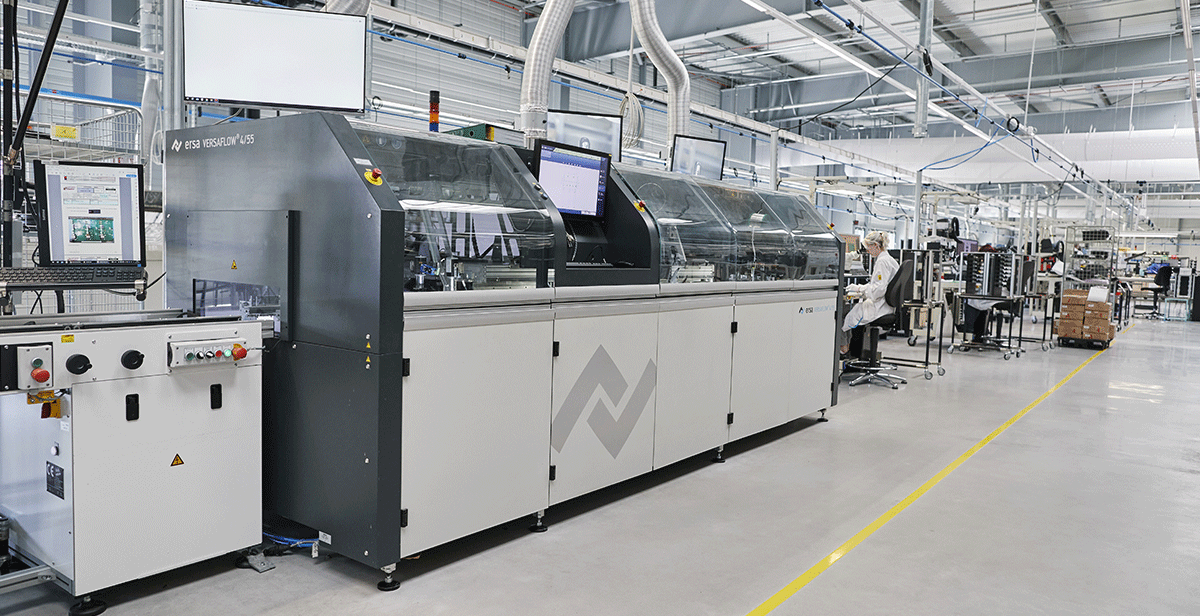

A semi-automated final assembly process was developed that utilizes a robotic screw machine, robotic end cap placement, and automated inspection along with operators for manual assembly operations.
The result of this process was a balanced production line with minimal handling or transport of very delicate assemblies. Inline inspection and test provide real-time feedback on yield, enabling rapid correction of any issues related to component quality or process workmanship.
When project volumes permit, automation improves quality and efficiency in assembly, testing, and complex operations.
“The team noticed that their automation efforts resulted in four times the production while reducing production staff by three-quarters and floor space requirements by 50 percent.”
Continuous flow production and scalable automation allow LACROIX to increase its production capacities. The efficiencies of automating large projects free up manpower and space for new projects.
Employees are redirected to new projects with less automation. This ensures skilled workforce availability and employees have more variety in their tasks. Cross-training further improves employee versatility.
Thus, this automation strategy creates an evolutionary cycle where all the actors involved – LACROIX, its customers and its employees – come out winners.
If you want to learn more about our focus on increasing efficiency through a variety of automation strategies, dive into our captivating article: “Robots, cobots… Did you say automation?”.
